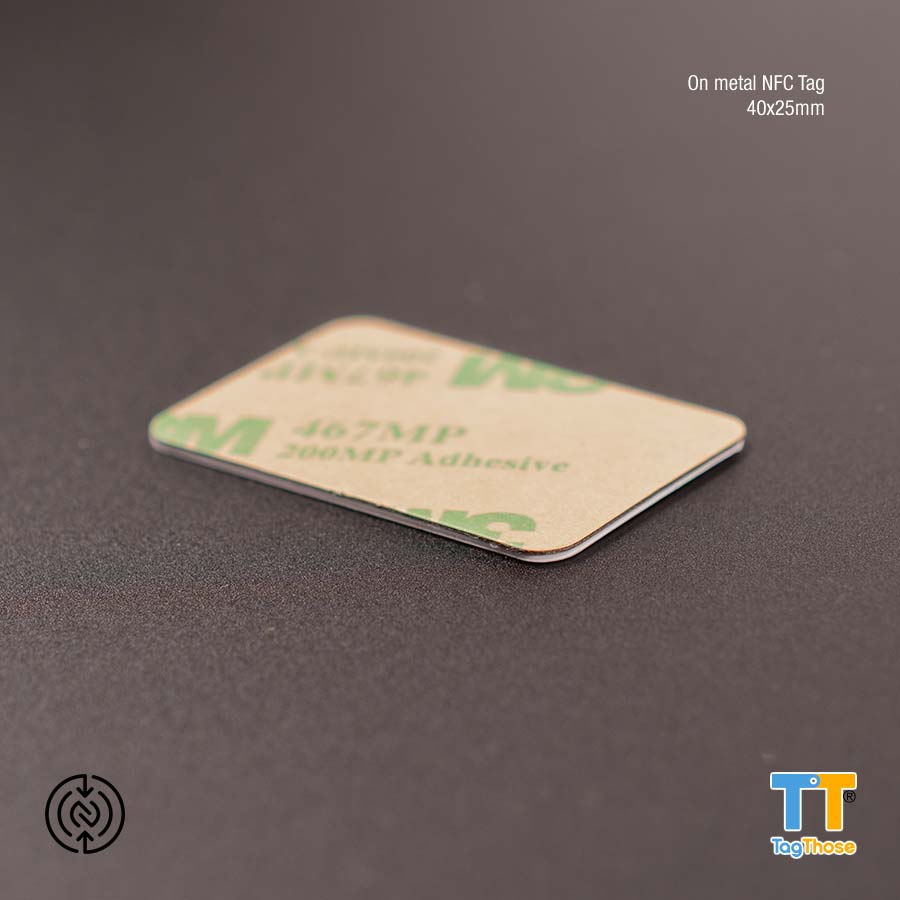

Antimetal NFC Tag 40x25mmNTAG213
Antimetal NFC Tag 40x25mmNTAG213
Antimetal NFC Tag 40x25mmNTAG213 10pcs - Image 2
Antimetal NFC Tag 40x25mmNTAG213 10pcs - Image 3

Antimetal NFC Tag 40x25mmNTAG213 10pcs

Antimetal NFC Tag 40x40mmNTAG215Square EasyMark™ Antimetal NFC Tag 40x40mmNTAG215Square 10pcs
0 out of 5
( There are no reviews yet. )

$21.99 inc. GST

  • Rectangular rigid antimetal NFC tag suitable for a many applications
  • 40x25mm
  • PVC material for durability and good protection of the integrated chip and antenna
  • Matte surface finish
  • T2 grade antimetal layer has a thin profile
  • 3M 467MP
  • NXP NTAG213 chip (144 bytes user memory)
  • Suitable on metal or carbon fiber surfaces
  • Reprogrammable and securable
  • Please read THIS BLOG for iPhone users

ORDER NOTES. Please read below before placing an order!

  1. Lead time is only an estimate which is up to 10 working days. This could be extended during busy periods or delay caused by incorrect order information. Lead time excludes delivery time.
  2. We work on a First-In-First-Out (FIFO) order schedule for stock and custom orders. We don’t expedite orders base on your time constraint. This keeps our ordering system fair for everybody. Please get in touch before placing an order that is less than our estimated lead time.
  3. Double check you have all the order requirements you need filled out such as programming. We make what you order. If requirements such as programming are not filled out, we do not program the NFC chip.
  4. A phone must have NFC and is turned on to use this tag.
  5. Depending on use, cosmetic damage such as scratches, abrasions and material wear will show overtime.
  6. Need volume pricing or want to resell? Get in touch HERE
Availability: In stock Category:

Program single full protocol URL in the tags (example: https://abc.com.au), text or phone number.

Recommended ONLY for tags being programmed with data (example: having your URL programmed in the tags for your order). If there is no data being programmed in your tag, DO NOT select this option. Use your password to make changes in the future. Password is your confirmed order number.

Description

Antimetal NFC Tag 40x25mmNTAG213

Antimetal NFC Tag 40x25mmNTAG213 chip available user memory is 144 bytes. It is able to store a URL link up to 132 characters or text up to 132 characters.

Made from durable PVC.

The 3M adhesive has excellent moisture, solvent, UV and temperature resistance. Sticker has excellent shear strength. It provides good adhesion on flat surface only.

Additional information

Chip Type

NTAG213

Colour

White

Material

PVC (Polyvinyl chloride)

Material Finish

Gloss

Size

25x25mm

Characteristics

Ambient Temperature -25 to 70 Degrees, Input Capacitance 50.0 pF (picofarads), Input Frequency 13.56 MHz (megahertz), Retention Time Up To 10 Years at ambient temperature of 22 Degrees, Write Endurance Up To 100'000 Cycles at Ambient Temperature of 22 Degrees

Frequency

13.56 MHz (Mega Hertz)

Limiting Values

Input Current 40 mA (milliampere), Storage Temperature -55 to 125 Degrees

Antimetal Layer

T2 Grade
