NFC Tags Melbourne
NFC Tags Melbourne
NFC Tags Melbourne Sample Pack - Image 2
NFC Tags Melbourne Sample Pack - Image 3

NFC Tags Melbourne Sample Pack

NFC Tags Sydney NFC Tags Sydney Sample Pack
NFC Tags Brisbane NFC Tags Brisbane Sample Pack
0 out of 5
( There are no reviews yet. )

$41.99 inc. GST

  • Model Update
  • Melbourne sample pack is excellent for testing NFC performance and size requirements
  • Pack contains a variety of 16 NFC inlay sticker including for on metal and anti tamper applications
  • NFC inlays are typically embedded in object or stickers placed on top
  • Tags are unrecorded, rewritable and in factory made state
  • Suitable for indoor and outdoor use
  • The adhesive is the popular and workhorse of graphic application 3M 467MP adhesive
  • Read THIS BLOG if you are an Apple user

ORDER NOTES. Please read below before placing an order!

  1. Read more of the tags characteristics in the main section.
  2. Solid black PVC tags look great but are highly sensitive. While great care is taken during production and handling, we can’t fully guarantee that tags are free from minor cosmetic imperfections.
  3. LEAD TIME (estimate):  Up to 5 working days. This could be extended during busy periods or delay caused by incorrect order information. Lead time excludes delivery time.
  4. Please read the product description and view product images thoroughly.
  5. We work on a First-In-First-Out (FIFO) order schedule for stock and custom orders. We don’t expedite orders base on your time constraint. This keeps our ordering system fair for everybody. Please get in touch before placing an order that is less than our estimated lead time.
  6. Double check you have all the order requirements you need filled out such as programming. We make what you order. If requirements such as programming are not filled out, we do not program the NFC chip.
  7. A phone must have NFC and is turned on to use this tag.
  8. Depending on use, cosmetic damage such as scratches, abrasions and material wear will show overtime.
  9. Colours may look different when viewed on different device display.
  10. Need volume pricing or want to resell? Get in touch HERE
Availability: In stock Category:

Description

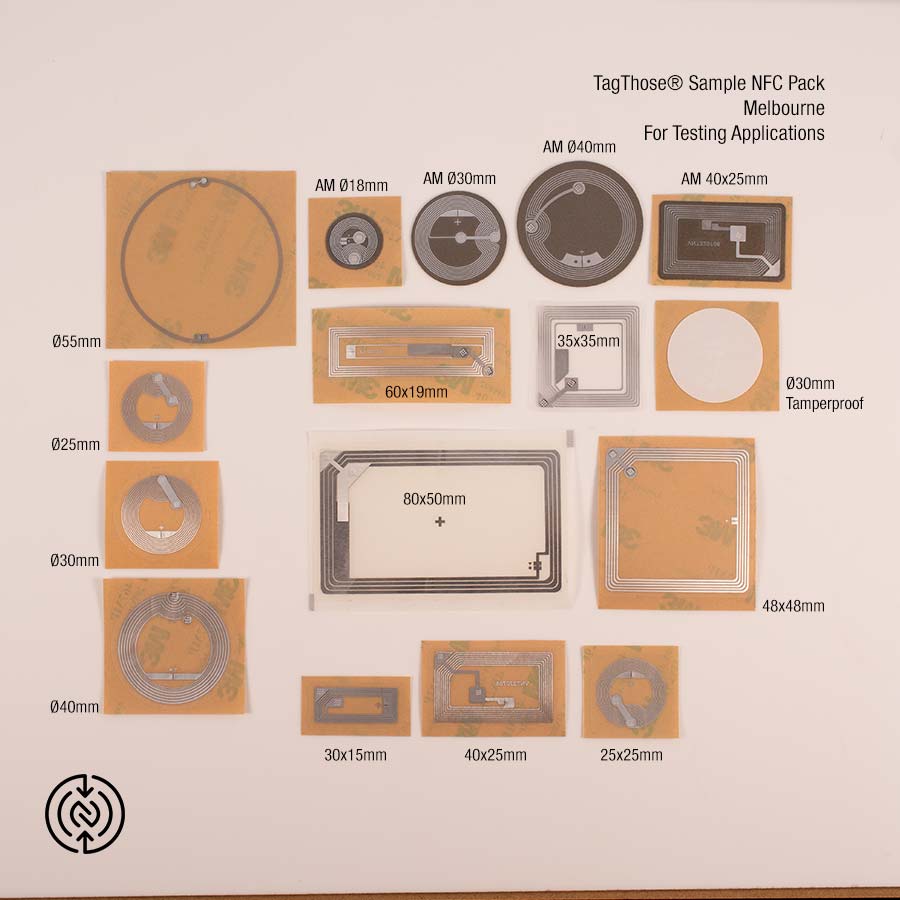

NFC Tags Melbourne Sample Pack

The NFC Tags Melbourne sample pack is ideal for testing for your application requirements. It is ideal for testing NFC performance and size. It contains a variety of NFC inlay sticker for standard and on metal application. In addition, a single dry inlay which is used to embed in materials.

Test for performance (read range and interaction area) and size. The key driver of performance is the antenna size.

  • Read range is the distance between the NFC inlay and the phone’s NFC reader. Basically, how far you can read a tag from your phone.
  • Interaction area is the target area. A large antenna is a bigger target and widens the interaction area.
  • Size has 2 parts for all NFC tags.
    • Physical size is the actual tag size. We suggest going as large as possible. Larger tags have a bigger antenna.
    • Antenna size is what determines the performance of a tag. A large antenna gives better performance.

NFC inlays are readable behind non metal surfaces such as cardboard, foam boards, acrylic, wood and many more. Test for your own application.

Antimetal or on metal tags must be used for metal or electrically conductive surfaces. The tag needs to be on top of the surface. It can’t be used behind it.

Tag Characteristics

All NFC inlays use genuine NXP NTAG213 Chip.

  1. Antimetal Inlays
    1. Ø18mm with Ø15mm antenna.
    2. Ø30mm with Ø27mm antenna. 3M LSE Adhesive.
    3. Ø40mm with Ø35mm antenna. 3M LSE Adhesive.
    4. 40x25mm with 37x22mm antenna.
  2. Standard Inlays
    1. Common Sizes
      1. Ø25mm with Ø22mm antenna
      2. Ø30mm with Ø25mm antenna
      3. Ø40mm with Ø35mm antenna
      4. 25x25mm with 22x22mm antenna
    2. Non Standard Size
      1. Ø55mm with Ø51mm antenna. Good read performance.
      2. 30x15mm with 26x11mm antenna
      3. 40x25mm with 37x22mm antenna
      4. 80x50mm with 76x45mm antenna. Good read performance.
      5. 60x19mm with 52x15mm antenna.
      6. 48x48mm with 45x45mm antenna.
  3. Dry Inlay
    1. 35x35mm with 32x32mm antenna
  4. Anti Tamper Sticker
    1. Ø30mm with Ø25mm antenna. White. 8 die cut tear points.

Do you need more information or advice?

Get In Touch

Additional information

Chip Type

NTAG213

Material

PET (Polyethylene terephthalate)

Antimetal Layer

NO

Frequency

13.56 MHz (Mega Hertz)

Characteristics

Ambient Temperature -25 to 70 Degrees, Input Capacitance 50.0 pF (picofarads), Input Frequency 13.56 MHz (megahertz), Retention Time Up To 10 Years at ambient temperature of 22 Degrees, Write Endurance Up To 100'000 Cycles at Ambient Temperature of 22 Degrees, Data Retention Up To 10 Years at Ambient Temperature of 22 Degrees, Read/Write Cycle Up To 100'000 at Ambient Temperature of 22 Degrees

Limiting Values

Input Current 40 mA (milliampere), Storage Temperature -55 to 125 Degrees

Sample Pack Type

Pack A, Pack B
