NFC Tag PPS NTAG213
NFC Tag PPS NTAG213
NFC Tag PPS NTAG213 10pcs - Image 2
NFC Tag PPS NTAG213 10pcs - Image 3

NFC Tag PPS NTAG213 10pcs

0 out of 5
( There are no reviews yet. )

$28.49 inc. GST

  • Durable PPS NFC Tag for applications needing high temperature and chemical resistance
  • Suitable for garment or laundry applications
  • Made from engineered PPS plastic (Polyphenylene Sulfide)
  • It’s resistant to high temperatures produced from flames, heat or steam. It’s stable at temperatures below 200°C for long periods and 260°C for short periods.
  • It’s resistant to chemicals
  • Approximately 2.6mm thick
  • NXP NTAG213 Chip (144 bytes user memory)
  • Black colour only
  • Sold as a pack of 10 pieces
  • iPhone users, read THIS BLOG

Garment Applications

The tag must be fully enclosed in a pocket, label or cavity and sewn close.

Performance

Smaller tags have average performance in terms of read range and interaction area. A Ø20mm tag read range is between 0-2cm. The tag must be aligned with the phone’s NFC antenna for a successful read.

ORDER NOTES. Please read below before placing an order!

  1. Lead time is only an estimate which is up to 10 working days. This could be extended during busy periods or delay caused by incorrect order information. Lead time excludes delivery time.
  2. We work on a First-In-First-Out (FIFO) order schedule for stock and custom orders. We don’t expedite orders base on your time constraint. This keeps our ordering system fair for everybody. Please get in touch before placing an order that is less than our estimated lead time.
  3. Double check you have all the order requirements you need filled out such as programming. We make what you order. If requirements such as programming are not filled out, we do not program the NFC chip.
  4. A phone must have NFC and is turned on to use this tag.
  5. Depending on use, cosmetic damage such as scratches, abrasions and material wear will show overtime.
  6. Need volume pricing or want to resell? Get in touch HERE
Availability: In stock Category:

Program single full protocol URL in the tags (example: https://abc.com.au), text or phone number.

Recommended ONLY for tags being programmed with data (example: having your URL programmed in the tags for your order). If there is no data being programmed in your tag, DO NOT select this option. Use your password to make changes in the future. Password is your confirmed order number.

Description

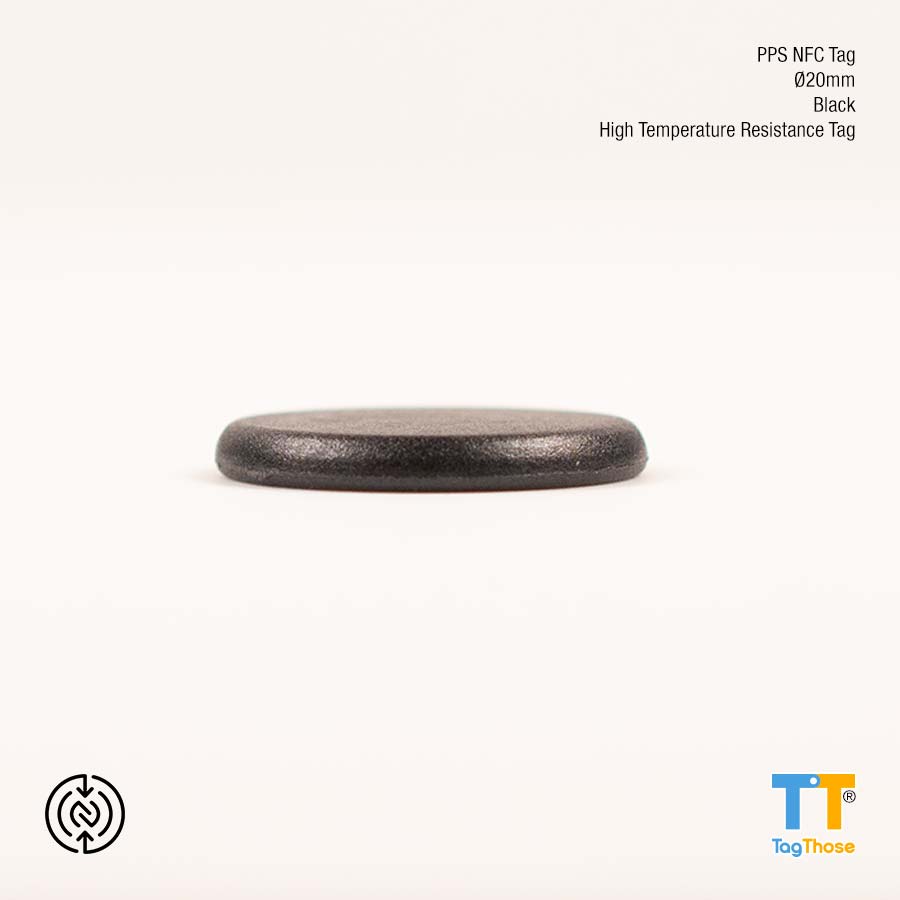

NFC Tag PPS NTAG213

Durable NFC Tag PPS NTAG213 is suitable demanding applications such as laundry. This tags is resistant to high temperatures, chemicals, weatherproof, impact, scratch, abrasion and dust resistant.

Not suitable for on metal and carbon fiber surface.

The tag has a thickness of around 2.6mm making it less bulky compared to ABS tags.

Additional information

Model

NO Adhesive

Antimetal Layer

NO

Characteristics

Input Capacitance 50.0 pF (picofarads), Input Frequency 13.56 MHz (megahertz), Retention Time Up To 10 Years at ambient temperature of 22 Degrees, Write Endurance Up To 100'000 Cycles at Ambient Temperature of 22 Degrees

Chip Type

NTAG213

Colour

Black

Material

PPS (Polyphenylene Sulfide)

Material Finish

Matte

Size

20mm Round
