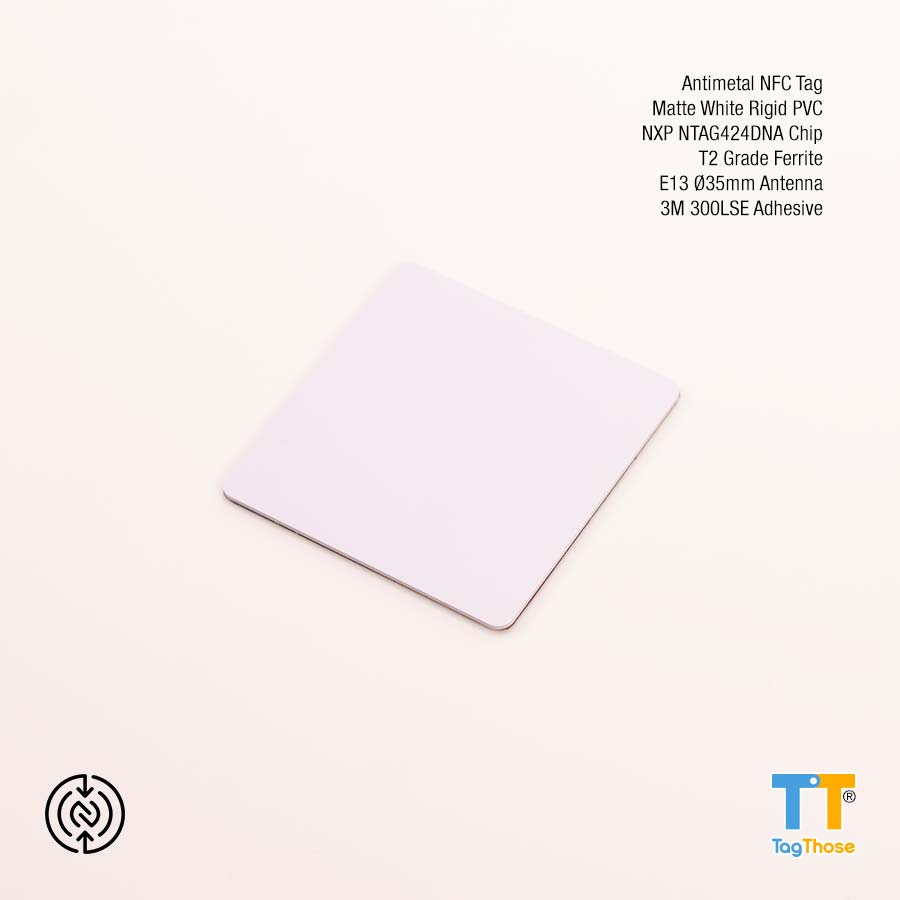

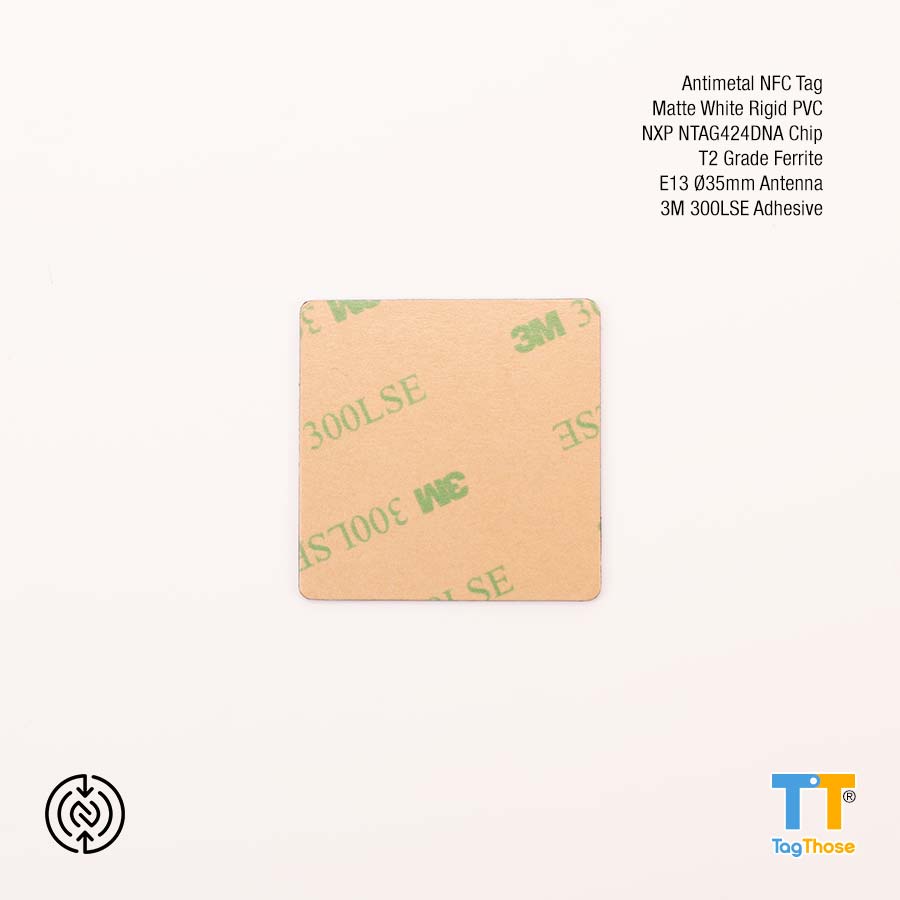

NTAG424DNA Antimetal NFC Tag 40x40mm
$34.99 inc. GST
- The versatile antimetal NFC inlay is suitable for a wide variety of applications
- NXP NTAG 424 DNA sets a new standard in secure NFC and IoT applications
- For specialised applications such as tag authentication
- 40x40mm with a T2 grade ferrite
- The inlay can be embedded in a product, place a sticker on top or use as is.
- Sold as a pack of 10 inlays
- Please read THIS BLOG if you are an iPhone user.
Read below for full product features and applications according to chip manufacturer NXP Semiconductors
ORDER NOTES. Please read below before placing an order!
- The antenna placement on the inlay has a variance of up to 2mm. This means it can be off centre up to this value.
- You need your own software for programming that uses the features of this chip. We don’t provide this support.
- Handling time is only an estimate which is up to 5 working days. This could be extended during busy periods or delay caused by incorrect order information. Lead time excludes delivery time.
- We work on a First-In-First-Out (FIFO) order schedule for stock and custom orders. We don’t expedite orders base on your time constraint. This keeps our ordering system fair for everybody. Please get in touch before placing an order that is less than our estimated lead time.
- Double check you have all the order requirements you need filled out such as programming. We make what you order. If requirements such as programming are not filled out, we do not program the NFC chip.
- A phone must have NFC and is turned on to use this tag.
- Depending on use, cosmetic damage such as scratches, abrasions and material wear will show overtime.
- Need volume pricing or want to resell? Get in touch HERE
- Description
- Additional information
- Reviews (0)
Description
NTAG424DNA Antimetal NFC Tag
NTAG424DNA Antimetal NFC Tag is suitable for a variety of standard and specialised applications.
Features
- NFC interoperability: ISO/IEC 14443-A communication, NFC Forum Type 4 Tag
- 416 bytes memory organized in an ISO/IEC 7816-4 file system: 32 bytes capability container, 256 bytes NDEF file, and a 128 bytes protected data file
- Common Criteria® EAL4 certification for hardware and software
- Standard AES-128 cryptography for authentication/secure messaging, or LRP wrapped AES operation for even stronger attack resistance
- SUN message authentication for advanced data protection within standard NDEF read operation
- 3-pass mutual authentication to access the protected data file
- Protected communication on a contactless air interface
- ECC-based NXP® originality signature and AES-128 based NXP originality check for assurance of tag origin
- Random ID and encrypted UID for enhanced privacy protection
- On-chip assembly of item URLs with flexible ASCII mirrors
- Attack resistant hardware
- Ultra-fast communication (up to 848 Kbits/s), benchmark authentication time
- High input capacitance (50 pF) for compact antenna design
Applications
Consumer
- Exclusive, hyper-personalized content experiences
- Status-driven messaging pre/post-retail (NTAG 424 DNA TagTamper)
- Tamper-proofing (NTAG 424 DNA TagTamper)
- Trusted offers for vouchers, loyalty coupons, etc.
Industrial
- Advanced anti-counterfeiting
- Healthcare
- Secure supply-chain traceability and authorised data access
*Click on button below for full source by NXP
Do you need higher quantities or customisation?
Minimum order requirements and setup fees apply.
Additional information
| Size | 88.5mm x 54mm |
|---|---|
| Antimetal Layer | NO |
| Chip Type | NTAG424 DNA |
| Colour | White |
| Material | PVC (Polyvinyl chloride) |
| Quantity | 5, 10 |
